YIMU conveyor Wrap Around Honey Round Bottle Labeling Machine 740W

Name: YIMU conveyor Wrap Around Honey Round Bottle Labeling Machine 740W
Brand: YIMU
Price: 1 USD

China YIMU conveyor Wrap Around Honey Round Bottle Labeling Machine 740W factory

Brand Name : YIMU

Model Number : YM515

Certification : CE

Place of Origin : Shanghai

MOQ : 1set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 17 sets per month

Delivery Time : 1-15days

Packaging Details : wooden case, L2100*W660*H1500mm, 460KG

Labeling speed : 20-52 bottles/min

Labeling error : ＜±0.4mm

Voltage : 220V/110V, 1phase, 50-60Hz

Warranty : 4 years

Bottle diameter : 30-140mm

Bottle height : 30-500mm

Name : Automatic Wrap Around Honey Labeler For PET Glass Round Bottle Jar Labeling Machine

Application : Commodity, Chemical, Food, Medical, Beverage

Contact Now

YM515 Automatic Wrap Around Honey Labeler For Pet Glass Round Bottle Jar Labeling Machine

Description:

This machine be widely used in pharmacy, food,drinks,cosmetics and daily chemical industries, for round bottles /jars /cans, any cylinder products labeling, such as honey, sauce, tablet, shampoo and so on.
The machine is made of anticorrosive stainless steel with convenient cleaning and disinfection, meeting national regulations and requirements for food machinery and food sanitation.
It is equipped with height adjusting handwheel, which makes it convenient to adjust the height of the labeling head to meet the needs of products of different diameters.
The machine adopts imported high-precision sensor, which provides accurate position control. It adopts imported PLC and 7" touch screen human-machine interface with parameterized production control and simple operation.
It adopts automatic bottle feeding hopper without the need of manually putting the bottles one by one, realizing simple and quick operation.
Machine can be used alone, or connect with packing line conveyor full automatic using.

Product Paramenters:

Model	YM515
Capacity (PCS/min)	0-60 (depond on bottle and label size)
Conveyor running side	from left to right / from right to left
Conveyor speed(meter/min)	≤40
Labeling error	＜ ±0.4 mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	360 mm(max)
Suitable for label size	W: 5-300mm, L:10-400mm
Air supply	0.3-0.4MPa
Power supply	AC220V 50/60HZ single phase (customized)
Power	740W
Weight	300 KG
Machine size	2005(L) 900 (W) 1680 (H) mm

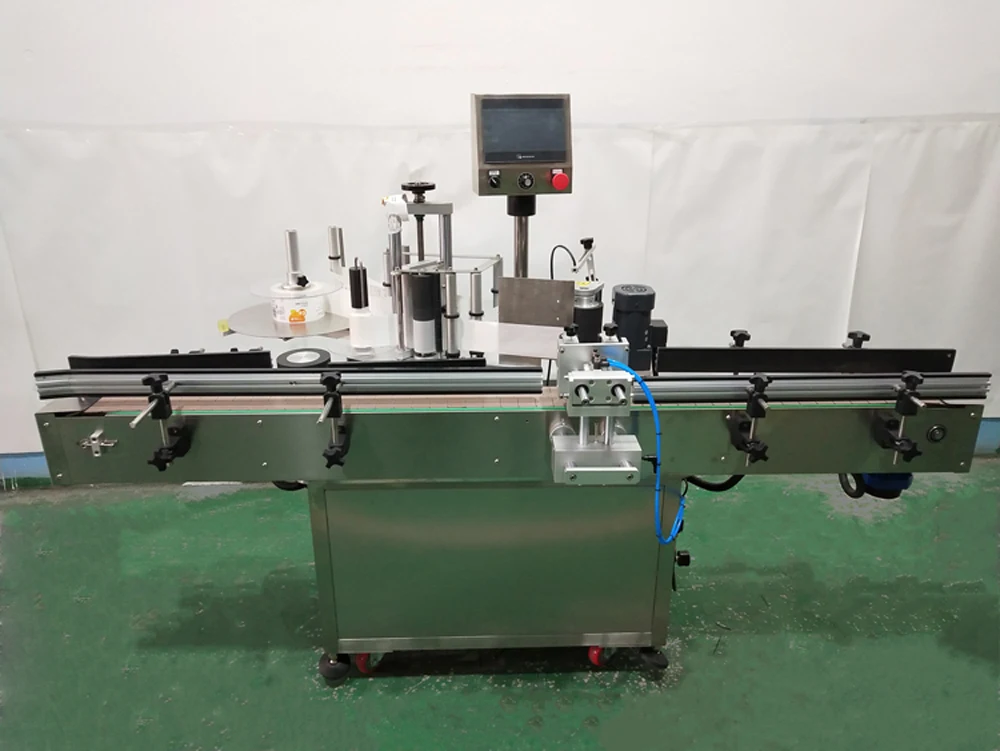

Details Images:

YIMU conveyor Wrap Around Honey Round Bottle Labeling Machine 740W

Applicaiton:

Type:Round bottle, jar, can, tin.
Material:Plastic, glass, metal.
Label: normal or transparent self adhesive label.

Our Customers:

Packaging&Shipping

YIMU conveyor Wrap Around Honey Round Bottle Labeling Machine 740W
